[BACKEND]CRUD-React 프론트 앤드 개발 및 실행 확인

※ React 프론트 앤드 개발 : 리액트 라이브러리의 경우 검증된 버전 체크 활용도 필요함
(본 자료의 무단 전재 및 배포를 금지합니다)

1. frontendreact 앱 프로젝트 생성

frontendreact 앱 프로젝트 생성은 create-react-app를 활용해서 설치합니다.

C:\frontendreact>create-react-app frontendreact --scripts-version 4.0.3

[에러참고 : "react-scripts": "4.0.3" 설치함. "react-scripts": "5.0.0"의 경우 버전 호환 문제로 에러날 수 있음]

또는

C:\frontendreact>yarn create react-app frontendreact --scripts-version 4.0.3
설치를 완료를 하게된다면  다음과 같은 코드가 나옵니다.

We suggest that you begin by typing:

  cd frontendreact
  npm start

해당 디렉토리로 이동하여, npm start(또는 yarn start)를 통해서 실행을 합니다.

========================================================================

[중요 : "react-scripts": "5.0.0" 설치 후 yarn start 할 경우 다음과 같이 에러 메시지가 나타날 경우, package.json 파일에서
react-scripts 버전 확인 바람. 예시 : "react-scripts": "5.0.0"이 아닌 "react-scripts": "4.0.3", 버전으로 변경하고,
yarn install 후 yarn start 해보기 바람]

[다음]
> react-scripts start

Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
 - options.allowedHosts[0] should be a non-empty string.

========================================================================

[참고]
C:\ReactSpringBoot>yarn global add create-react-app
         [참고 : npm install -g create-react-app]
C:\ReactSpringBoot\frontendreact>yarn install

========================================================================

2. 리액트와 스프링부트의 CORS 문제 해결하기

스프링부트의 백엔드 서버는 localhost:9008에서 실행되고 있고,
React 프론트엔드 서버는 localhost:3000번으로 실행됩니다.
그러다보니 CORS( cross-origin requests) 가 발생하게되는데,
그런 문제를 해결 하기위해서는 Proxy를 프론트쪽에서 잡아주셔야 합니다.

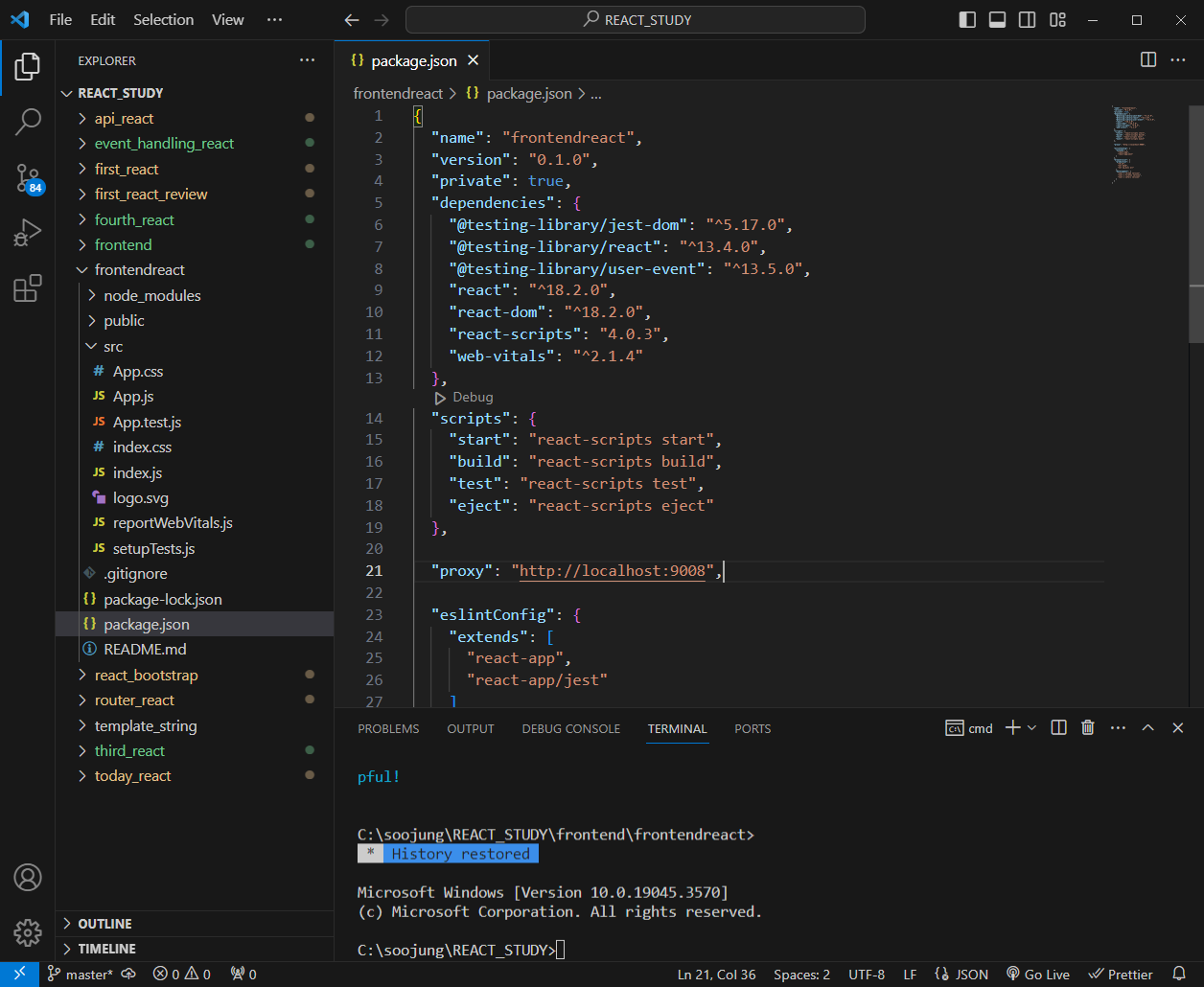

package.json 파일에 다음의 구문을 추가해 줍니다.

[중요 : 추가해줄 구문]

"proxy": "http://localhost:9008",

====================================================================

[앞서 Proxy 적용이 된 CORS 문제 해결된 package.json 파일]
{
  "name": "frontend",
  "version": "0.1.0",
  "private": true,
  "dependencies": {
    "@testing-library/jest-dom": "^5.11.4",
    "@testing-library/react": "^11.1.0",
    "@testing-library/user-event": "^12.1.10",
    "react": "^17.0.2",
    "react-dom": "^17.0.2",
    "react-scripts": "4.0.3",
    "web-vitals": "^1.0.1"
  },
  "scripts": {
    "start": "react-scripts start",
    "build": "react-scripts build",
    "test": "react-scripts test",
    "eject": "react-scripts eject"
  },

  "proxy": "http://localhost:9008",

  "eslintConfig": {
    "extends": [
      "react-app",
      "react-app/jest"
    ]
  },
  "browserslist": {
    "production": [
      ">0.2%",
      "not dead",
      "not op_mini all"
    ],
    "development": [
      "last 1 chrome version",
      "last 1 firefox version",
      "last 1 safari version"
    ]
  }
}

====================================================================

3. 리액트의 Invalid options object. Dev Server has been initialized using an options object that does not match the API schema.
   오류 문제 해결

[중요] 리액트 앱 프로젝트에 .env 파일 생성 후 다음의 구문을 추가해 줍니다.

[중요 : .env 파일 생성 후에 추가해줄 구문]
DANGEROUSLY_DISABLE_HOST_CHECK=true

====================================================================


4. axios 라이브러리 추가

   C:\ReactSpringBoot\frontendreact>npm install axios@0.24.0

   또는

   C:\ReactSpringBoot\frontendreact>yarn add axios@0.24.0

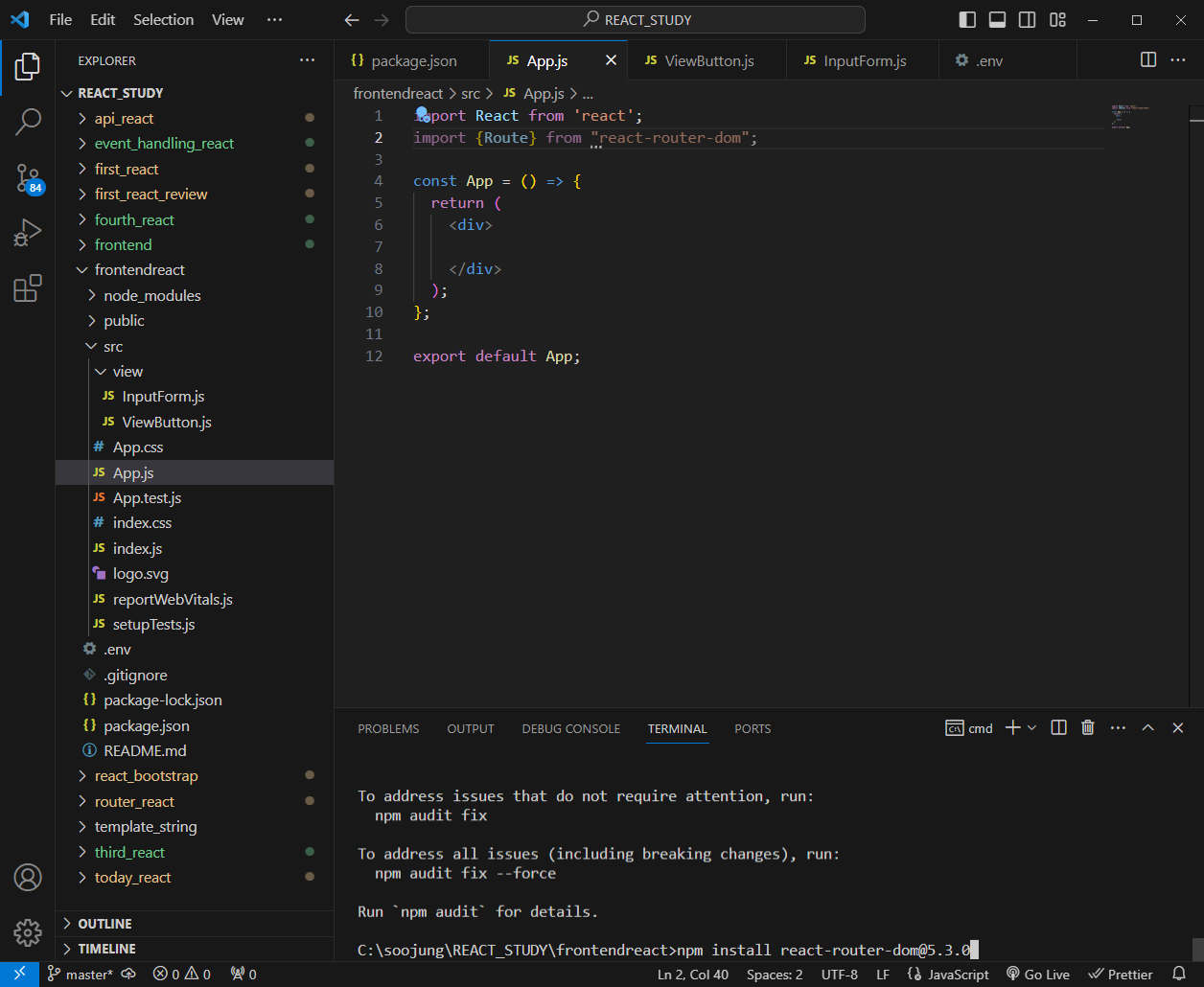

5. react-router-dom 라이브러리 추가

   C:\ReactSpringBoot\frontendreact>npm install react-router-dom@5.3.0

   또는

   C:\ReactSpringBoot\frontendreact>yarn add react-router-dom@5.3.0

6. package.json 파일 안에 dependencies 에 "axios": "^0.24.0",
   "react-router-dom": "5.3.0" 추가 확인함

[참고 : yarn.lock 파일은 항상 yarn 이 자동으로 관리하도록 하고,
        직접 수정하지 않습니다. 그리고 버전관리에 포함합니다]

7. 앞서, package.json 파일 안에 "proxy": "http://localhost:9008", 추가했던거 확인함.

  "dependencies": {
    "@testing-library/jest-dom": "^5.14.1",
    "@testing-library/react": "^12.0.0",
    "@testing-library/user-event": "^13.2.1",
    "axios": "^0.24.0",
    "react": "^17.0.2",
    "react-dom": "^17.0.2",
    "react-router-dom": "5.3.0",
    "react-scripts": "4.0.3",
    "web-vitals": "^2.1.0"
  },
  "scripts": {
    "start": "react-scripts start",
    "build": "react-scripts build",
    "test": "react-scripts test",
    "eject": "react-scripts eject"
  },
  "proxy": "http://localhost:9008",
  "eslintConfig": {
    "extends": [
      "react-app",
      "react-app/jest"
    ]
  },

8. frontendreact\src폴더 안에 App.js 소스 코딩

[App.js 소스 코딩]
import { Route } from "react-router-dom";
import ViewButton from "./views/ViewButton.js";
import InputForm from "./views/InputForm.js";

const App = () => {
  return (
    <>
      <Route exact path="/" component={ViewButton} />
      {/*/:crud 경로에서 :crud 부분은 URL 파라미터를 정의할 때
         사용하는 React Router의 문법입니다.
          경로에 이와 같이 URL 파라미터가 포함된 경우,
          패턴 매칭이 되어 /1, /a 등이 모두 매칭이 되며,
          해당 파라미터는 변수화되어 맵핑된 컴포넌트에서
          match.params.crud 같이 읽어올 수 있습니다. */}
      <Route exact path="/:crud" component={InputForm} />
    </>
  );
};

export default App;

==========================================================

9. frontendreact\src폴더 안에 App.css 소스 안에 내용들은 없어도 됨

[App.css 소스 코딩]

/* 안에 내용들은 없어도 됨 */

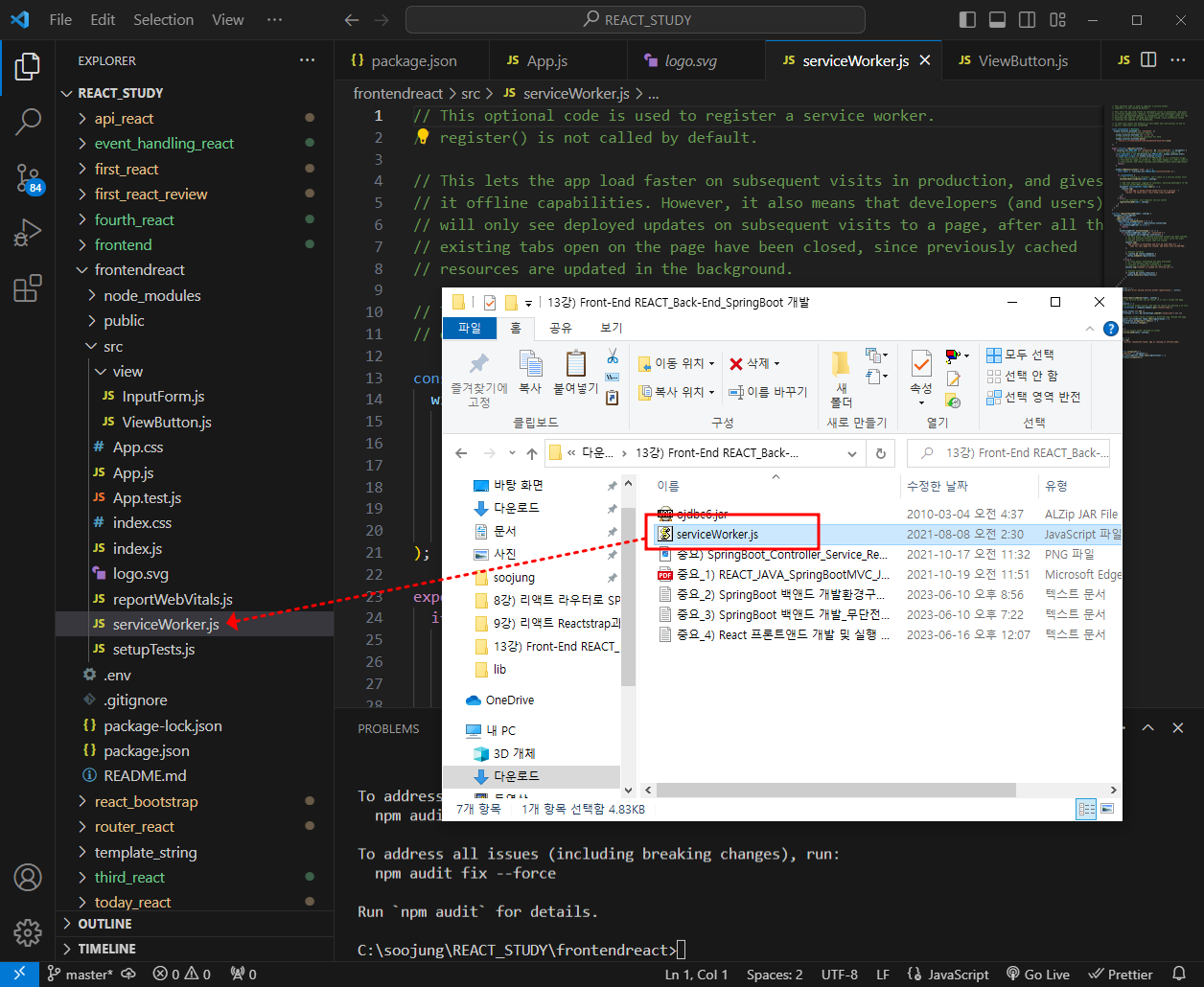

10. serviceWorker.js 파일을 src 폴더 안에 넣어줌

11. frontendreact\src폴더 안에 index.js 수정 코딩 : serviceWorker.js 파일도 추가해 줌

[index.js 소스 코딩]

import React from 'react';
import ReactDOM from 'react-dom/client';
import { BrowserRouter } from 'react-router-dom';
import './index.css';
import App from './App';

// src 폴더에 serviceWorker.js 파일을 넣어줍니다.
import * as serviceWorker from './serviceWorker';

const root = ReactDOM.createRoot(document.getElementById("root"));
root.render(<BrowserRouter><App /></BrowserRouter>);

// 여기서는, serviceWorker.unregister(); 처리를 해줍니다.
// 이것은 리액트 앱 배포시 cache를 남기지 않도록 처리해 줍니다.
// 이렇게 해주는 이유는, index 파일이 cache를 남기게 된다면,
// static 자산의 파일명이 업데이트 되더라도
// index 파일에 링크된 파일명이 바뀌지 않기 때문에
// 새로운 배포가 적용되지 않을 수 있기 때문입니다.
serviceWorker.unregister();

==========================================================

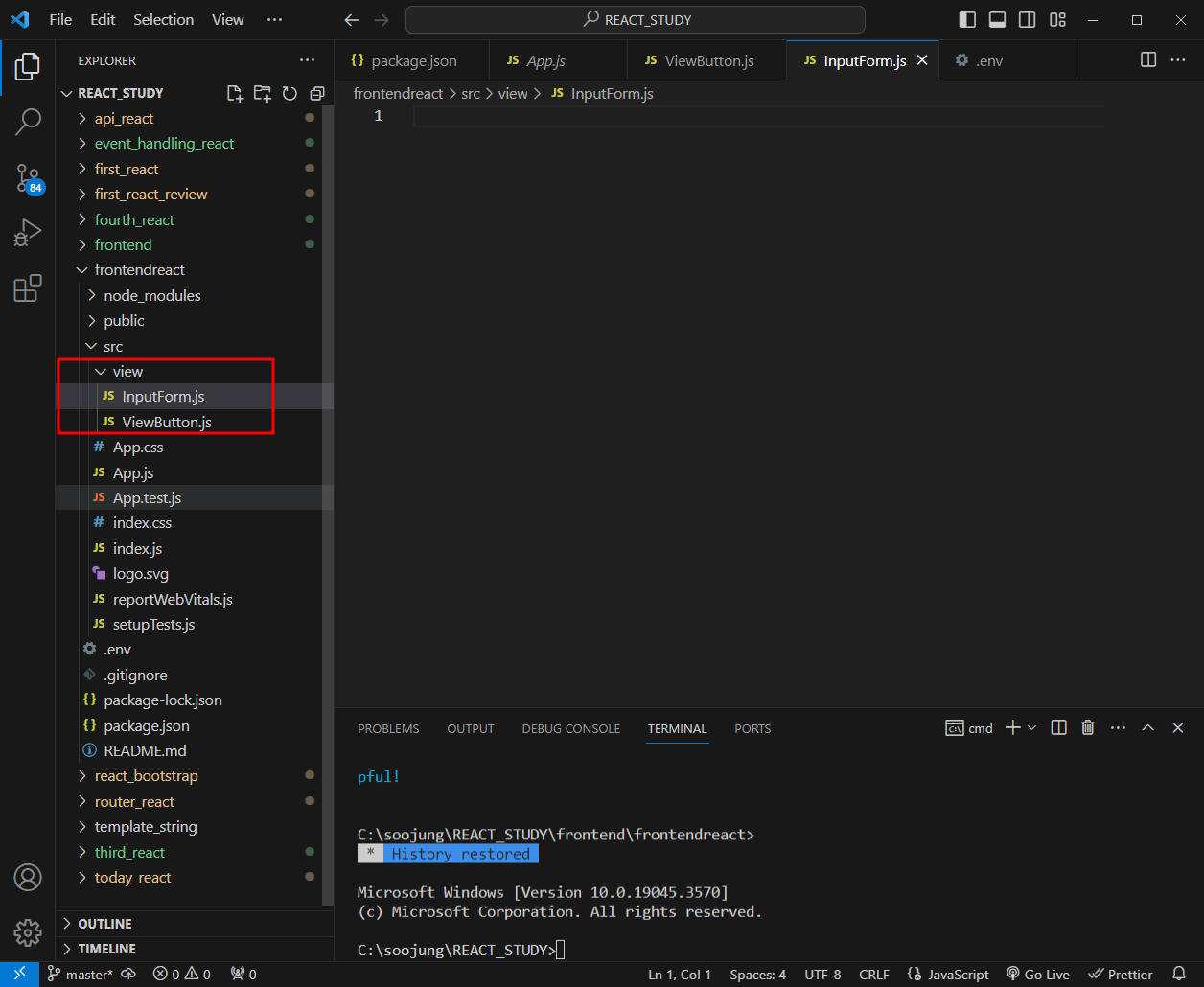

12. frontendreact\src폴더 안에 views 폴더 생성

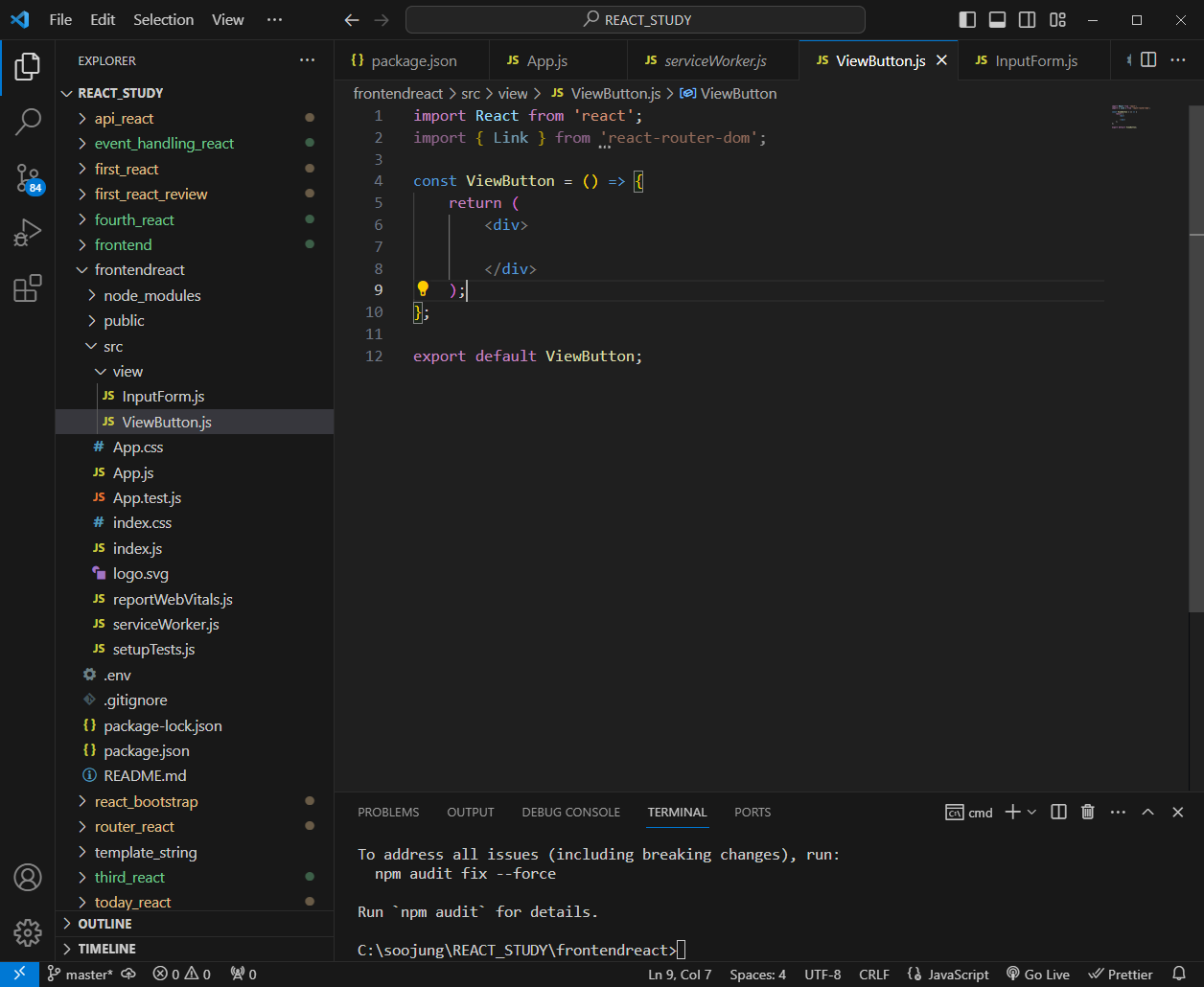

13. 앞서 생성한 views 폴더 안에 ViewButton.js 소스 코딩

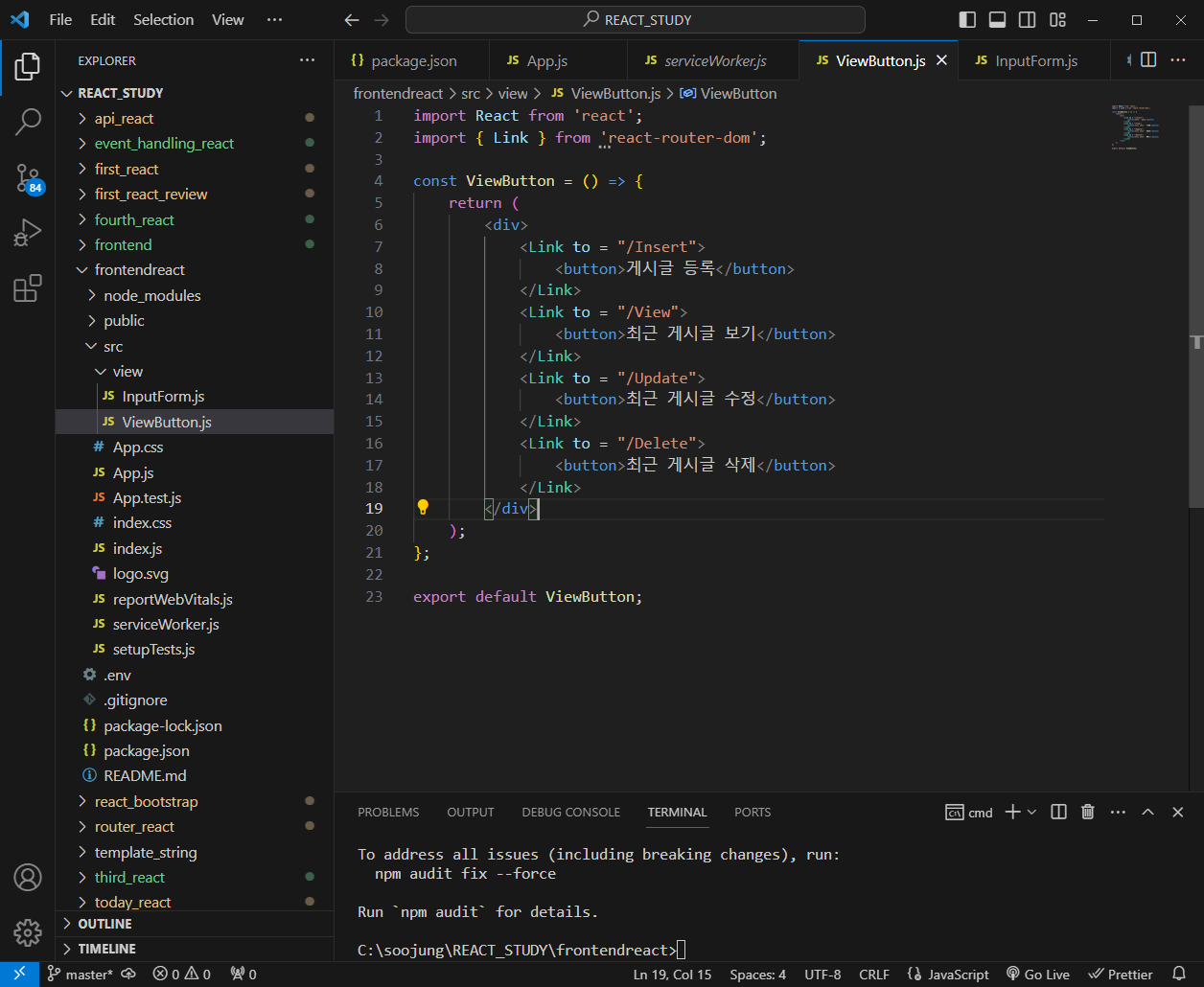

[ViewButton.js 소스 코딩]

import React from "react";
import { Link } from "react-router-dom";

const ViewButton = () => {
  return (
    <>
      <Link to="/Insert">
        <button>게시글 등록</button>
      </Link>
      <Link to="/View">
        <button>최근 게시글 보기</button>
      </Link>
      <Link to="/Update">
        <button>최근 게시글 수정</button>
      </Link>
      <Link to="/Delete">
        <button>최근 게시글 삭제</button>
      </Link>
    </>
  );
};

export default ViewButton;

==========================================================

14. 앞서 생성한 views 폴더 안에 InputForm.js 소스 코딩

[InputForm.js 소스 코딩]

import axios from "axios";
import React, { Component } from "react";
import { Link } from "react-router-dom";

class InputForm extends Component {
  constructor(props) {
    super(props);
    this.state = {
      articleId: "",
      articleTitle: "",
      articleContent: "",
      crud: props.match.params.crud,
    };
    if (this.state.crud !== "Insert") {
      this.getData();
    }
  }

  createHeaderName() {
    const crud = this.state.crud;
    if (crud === "View") {
      return "조회";
    } else if (crud === "Update") {
      return "수정";
    } else if (crud === "Delete") {
      return "삭제";
    } else if (crud === "Insert") {
      return "등록";
    }
  }

  createCrudBtn() {
    const crud = this.state.crud;
    if (crud === "View") {
      return null;
    } else {
      const crudName =
      crud === "Update" ? "수정" : crud === "Insert" ? "등록" : "삭제";
      return (
        <button onClick={() => this.crud()}>게시글 {crudName}</button>
      );
    }
  }

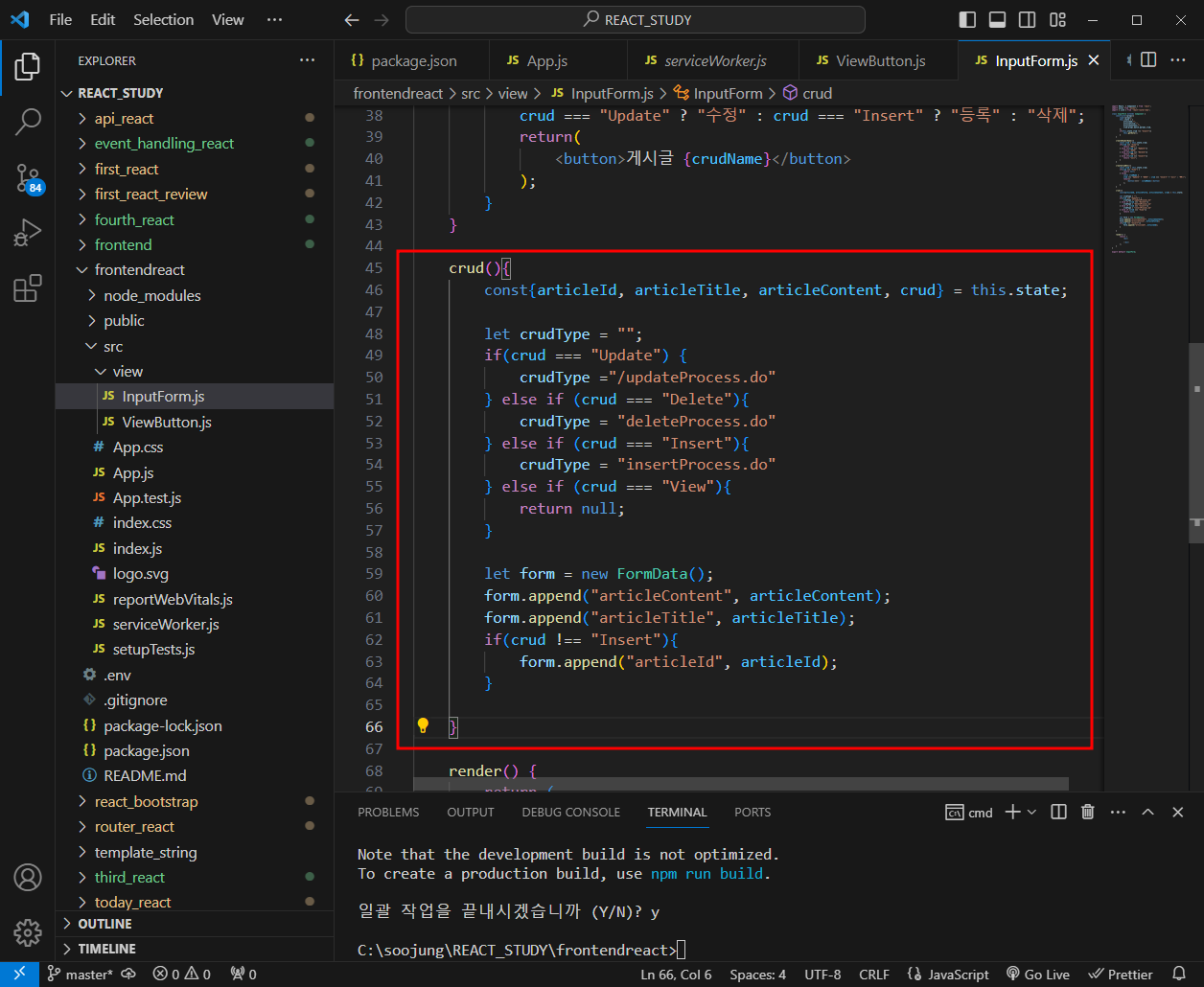

  crud() {
    const { articleId, articleTitle, articleContent, crud } = this.state;

    let crudType = "";

    if (crud === "Update") {
      crudType = "/updateProcess.do";
    } else if (crud === "Delete") {
      crudType = "/deleteProcess.do";
    } else if (crud === "Insert") {
      crudType = "/insertProcess.do";
    } else if (crud === "View") {
      return null;
    }

    let form = new FormData();
    form.append("articleContent", articleContent);
    form.append("articleTitle", articleTitle);
    if (crud !== "Insert") {
      form.append("articleId", articleId);
    }

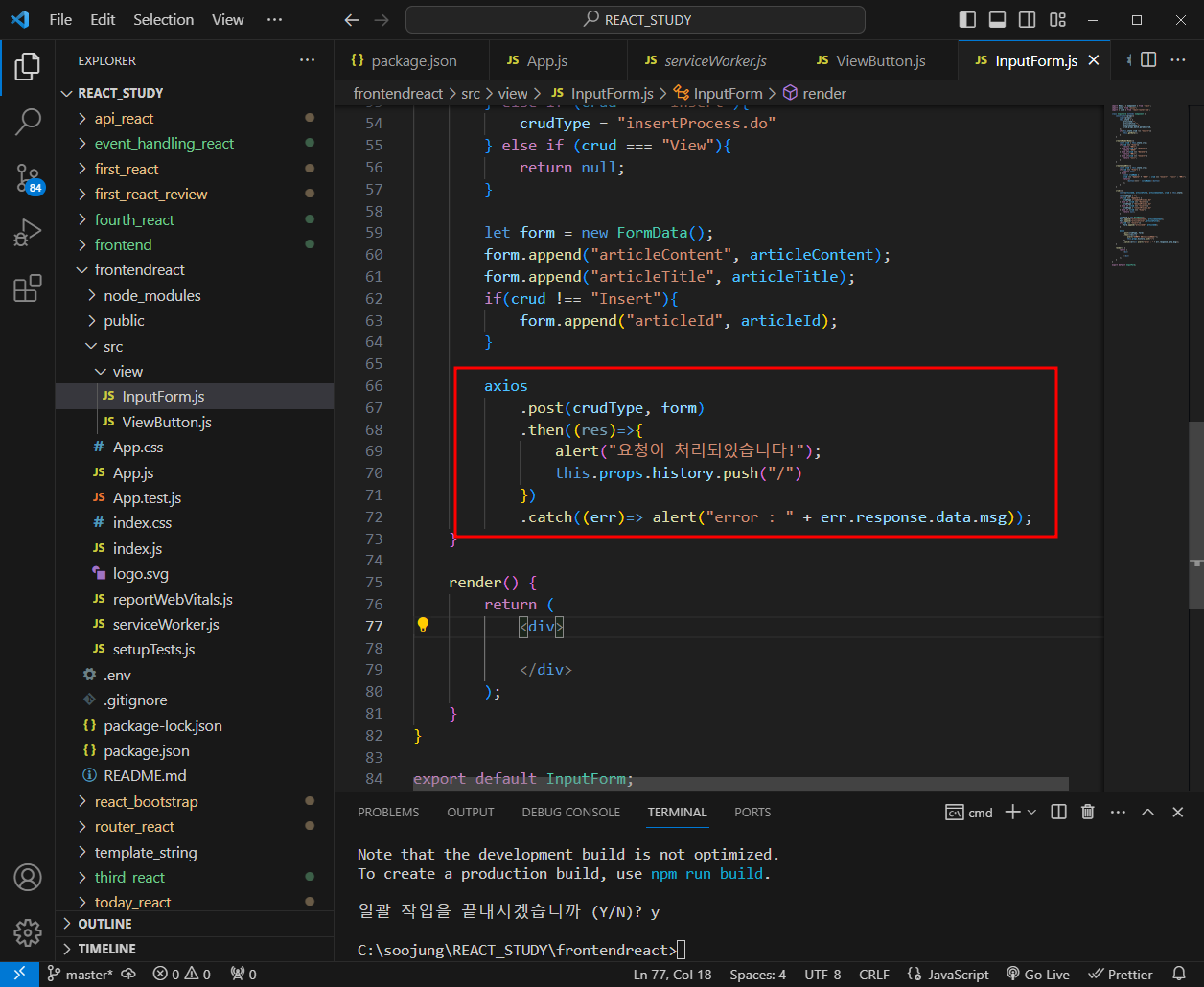

    axios
      .post(crudType, form)
      .then((res) => {
        alert("요청이 처리되었습니다");
        this.props.history.push("/");
      })
      .catch((err) => alert("error: " + err.response.data.msg));
  }

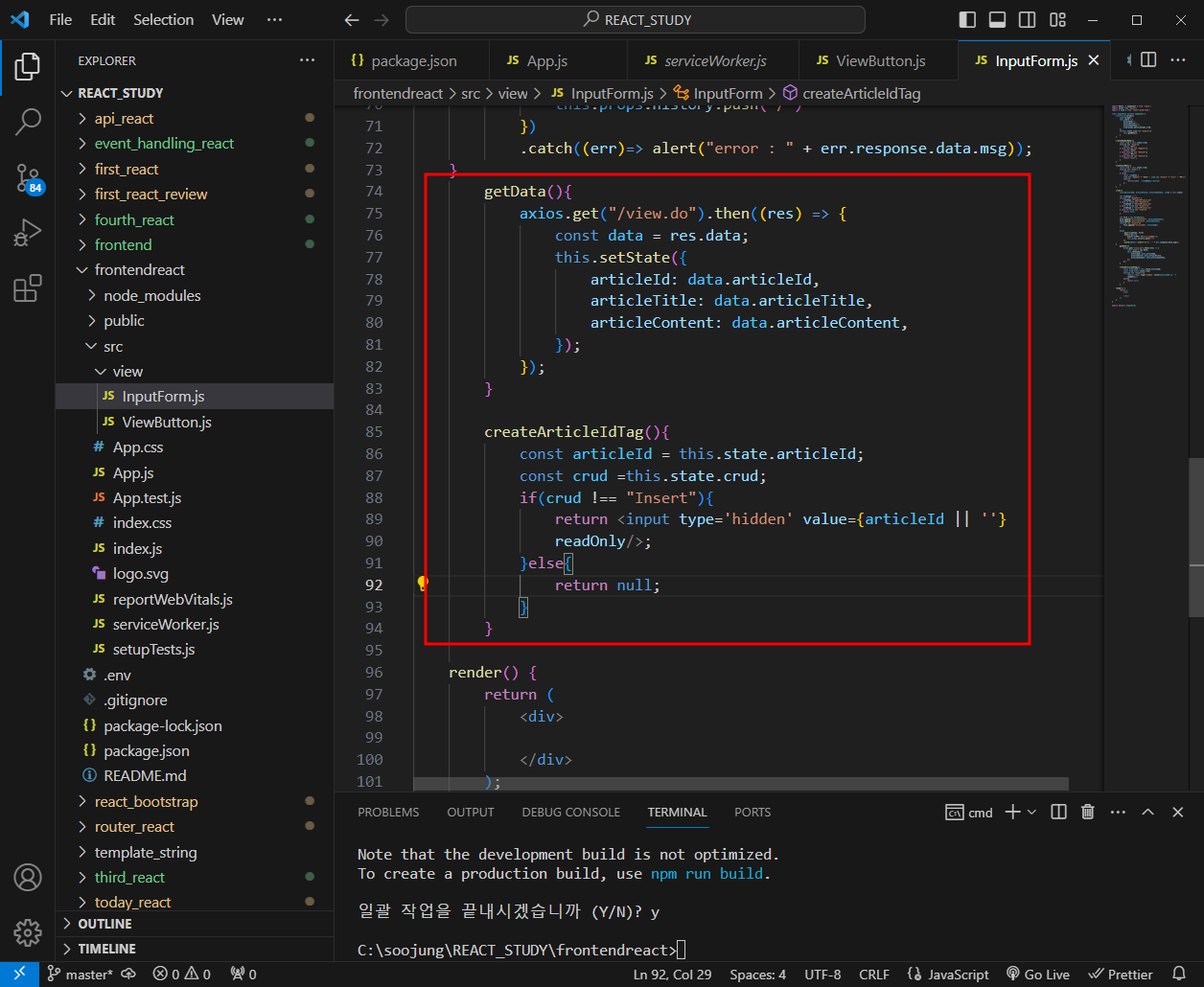

  getData() {
    axios.get("/view.do").then((res) => {
      const data = res.data;
      this.setState({
        articleId: data.articleId,
        articleTitle: data.articleTitle,
        articleContent: data.articleContent,
      });
    });
  }

  createArticleIdTag() {
    const articleId = this.state.articleId;
    const crud = this.state.crud;
    if (crud !== "Insert") {
      return <input type="hidden" value={articleId || ''} readOnly />;
    } else {
      return null;
    }
  }

  render() {
    const articleTitle = this.state.articleTitle;
    const articleContent = this.state.articleContent;

    return (
      <>
        <h1>게시글 {this.createHeaderName()}</h1>
        {this.createArticleIdTag()}
        <h3>제목</h3>
        <input
          type="text"
          value={articleTitle || ''}
          onChange={(event) =>
            this.setState({ articleTitle: event.target.value })
          }
        />
        <br />
        <h3>내용</h3>
        <textarea
          rows="10"
          cols="20"
          value={articleContent || ''}
          onChange={(event) =>
            this.setState({ articleContent: event.target.value })
          }
        ></textarea>
        <br /> <br />
        {this.createCrudBtn()}
        <Link to="/">
          <button type="button">취소</button>
        </Link>
      </>
    );
  }
}

export default InputForm;

==========================================================

15. 다음과 같이 실행 확인함

C:\ReactSpringBoot\frontendreact>npm start

또는

C:\ReactSpringBoot\frontendreact>yarn start

==========================================================

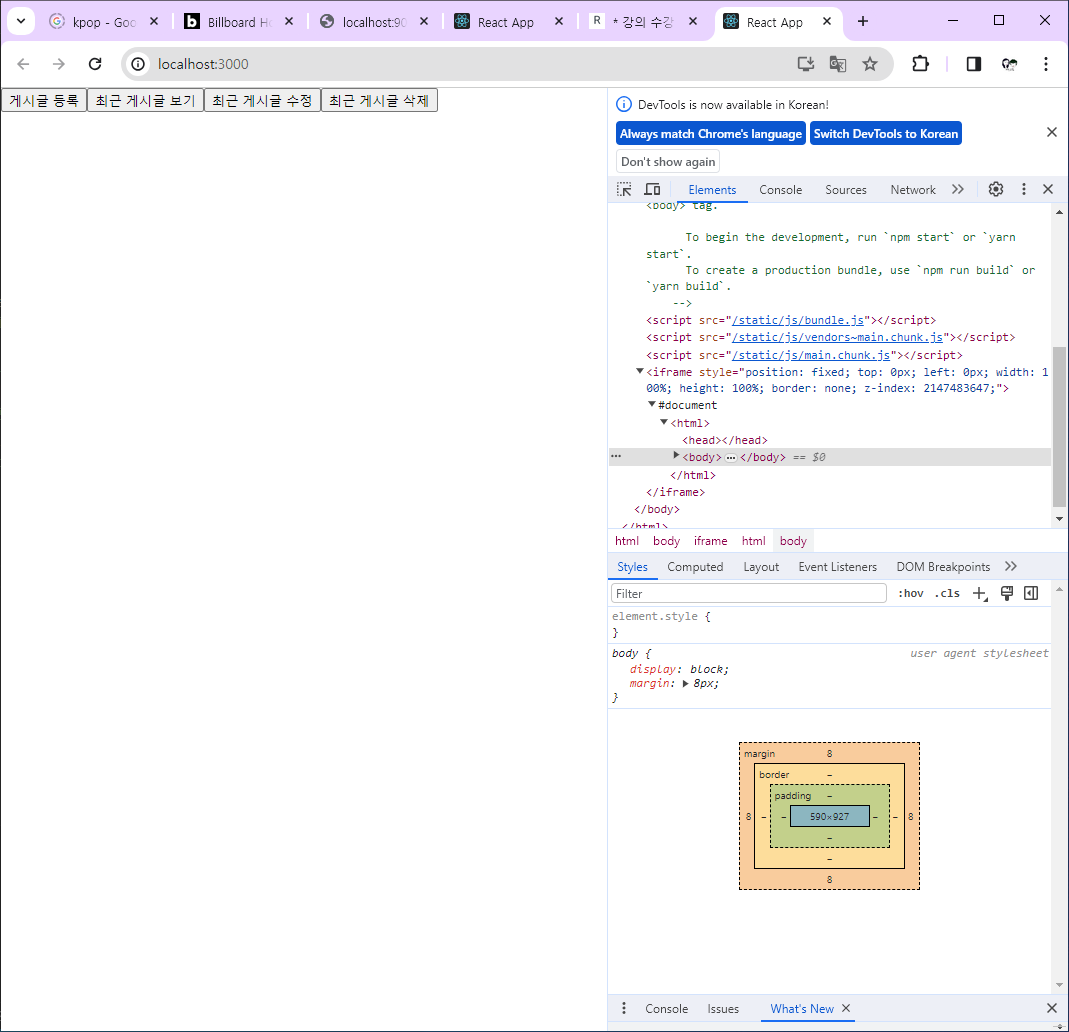

16. 크롬 웹브라우저 실행 - http://localhost:3000/
   1) 게시글 등록 - 최근 게시글 보기
   2) 최근 게시글 수정 - 최근 게시글 보기
   3) 최근 게시글 삭제 - 최근 게시글 보기
   4) 게시글 등록 - 최근 게시글 보기

==========================================================

17. OracleDB sqlplus 활용 springboot_crud 테이블과 데이터 등록 정보를 확인합니다.
   SQL> select * from tab;
   SQL> select * from springboot_crud;

==========================================================

---

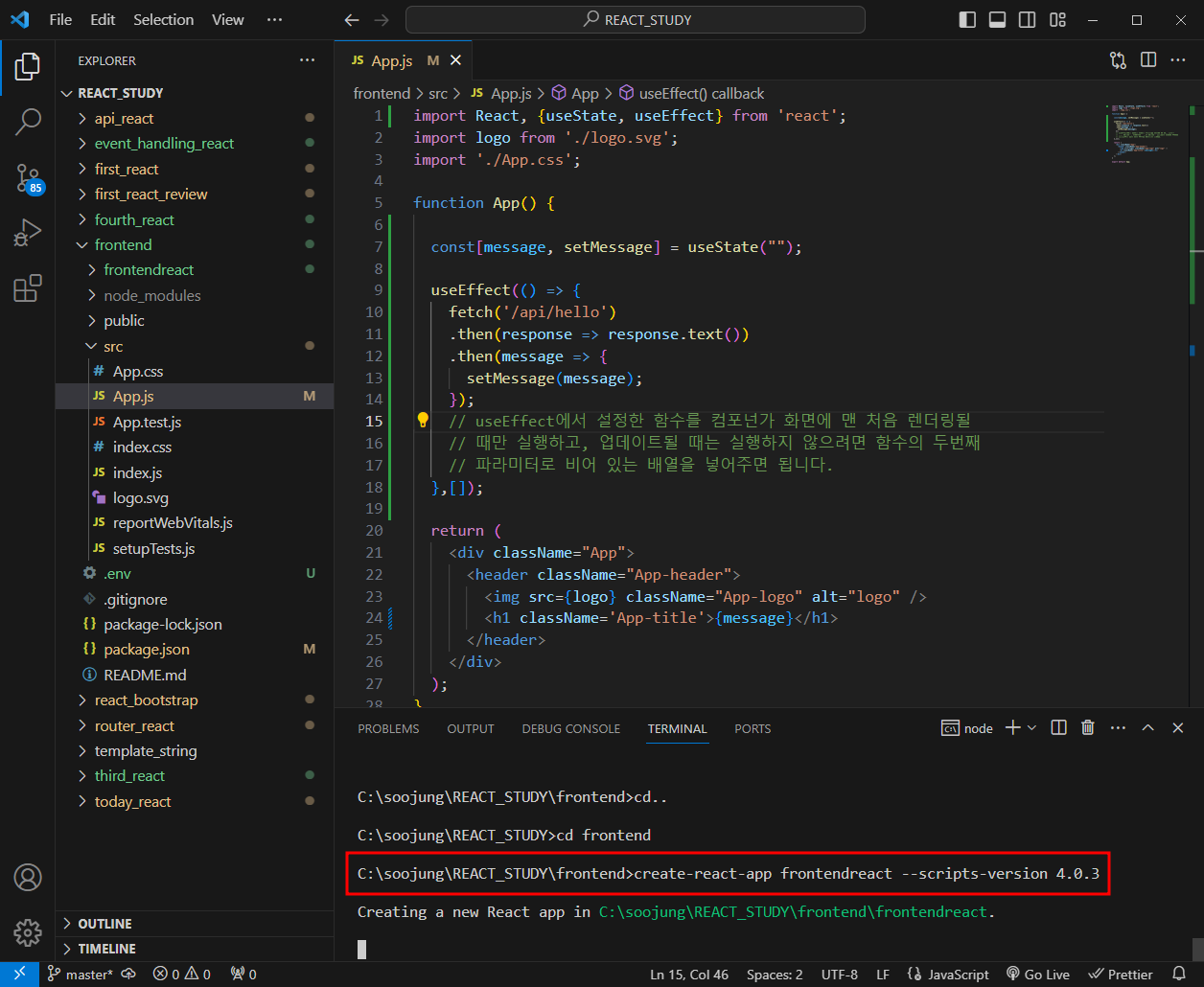

create-react-app frontendreact --scripts-version 4.0.3

"proxy": "http://localhost:9008",

npm install axios@0.24.0
npm install react-router-dom@5.3.0


// src 폴더에 serviceWorker.js 파일을 넣어줍니다.
import * as serviceWorker from './serviceWorker';

// 여기서는, serviceWorker.unregister(); 처리를 해줍니다.
// 이것은 리액트 앱 배포시 cache를 남기지 않도록 처리해 줍니다.
// 이렇게 해주는 이유는, index 파일이 cache를 남기게 된다면,
// static 자산의 파일명이 업데이트 되더라도
// index 파일에 링크된 파일명이 바뀌지 않기 때문에
// 새로운 배포가 적용되지 않을 수 있기 때문입니다.
serviceWorker.unregister();

      {/*/:crud 경로에서 :crud 부분은 URL 파라미터를 정의할 때
         사용하는 React Router의 문법입니다.
          경로에 이와 같이 URL 파라미터가 포함된 경우,
          패턴 매칭이 되어 /1, /a 등이 모두 매칭이 되며,
          해당 파라미터는 변수화되어 맵핑된 컴포넌트에서
          match.params.crud 같이 읽어올 수 있습니다. */}

viewbutton

---

InputForm

InputForm.jsx

import React, { Component } from 'react';
import axios from 'axios';
import {Link} from 'react-router-dom';


class InputForm extends Component {
    constructor(props){
        super(props);
        this.state = {
            articleId:"",
            articleTitle:"",
            articleContent:"",
            crud: props.match.params.crud,
        };
        if(this.state.crud !== "Insert"){
            this.getData();
        }
    }
    createHeaderName(){
        const crud = this.state.crud;
        if(crud ==="View"){
            return "조회";
        }else if(crud ==="Update"){
            return "수정";
        }else if(crud ==="Delete"){
            return "삭제";
        }else if(crud ==="Insert"){
            return "등록";
        }
    }

    createCrudBtn(){
        const crud = this.state.crud;
        if(crud === "View"){
            return null;
        }else{
            const crudName =
            crud === "Update" ? "수정" : crud === "Insert" ? "등록" : "삭제";
            return(
                <button onClick={() => this.crud()}>게시글 {crudName}</button>
            );
        }
    }

    crud(){
        const{articleId, articleTitle, articleContent, crud} = this.state;

        let crudType = "";
        if(crud === "Update"){
            crudType = "/updateProcess.do";
        }else if(crud === "Delete"){
            crudType = "/deleteProcess.do";
        }else if(crud === "Insert"){
            crudType = "/insertProcess.do";
        }else if(crud === "View"){
            return null;
        }
        let form = new FormData();
        form.append("articleContent", articleContent);
        form.append("articleTitle", articleTitle);
        if(crud !== "Insert"){
            form.append("articleId" ,articleId);
        }

        axios
            .post(crudType, form)
            .then((res)=>{
                alert("요청이 처리되었습니다!");
                this.props.history.push("/");
            })
            .catch((err) => alert("error : "+err.response.data.msg));
    }

    getData(){
        axios.get("/view.do").then((res) => {
            const data = res.data;
            this.setState({
                articleId: data.articleId,
                articleTitle:data.articleTitle,
                articleContent:data.articleContent,
            });
        });
    }

    createArticleIdTag(){
        const articleId = this.state.articleId;
        const crud = this.state.crud;
        if(crud !== "Insert"){
            return <input type='hidden' value={articleId || ''} readOnly />;
        }else{
            return null;
        }
    }

    render() {
        const articleTitle = this.state.articleTitle;
        const articleContent = this.state.articleContent;

        return (
            <>
                <h1>게시글 {this.createHeaderName()}</h1>
                {this.createArticleIdTag()}
                <h3>제목</h3>
                <input type='text' value={articleTitle || ''} onChange={(event) => this.setState({articleTitle:event.target.value})}/>
                <br />
                <h3>내용</h3>
                <textarea rows="10" cols="20" value={articleContent || ''} onChange={(event) => this.setState({articleContent: event.target.value})}></textarea>
                <br /><br />
                {this.createCrudBtn()}
                <Link to="/">
                    <button type='button'>취소</button>
                </Link>
            </>
        );
    }
}

export default InputForm;
